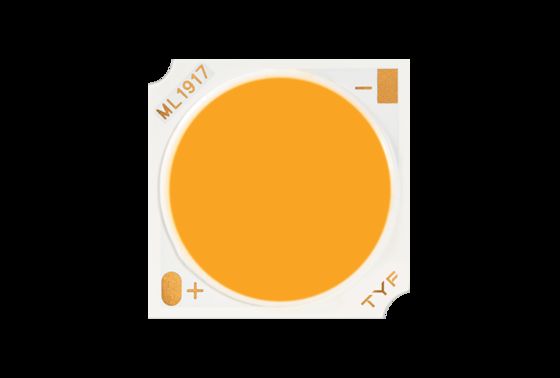

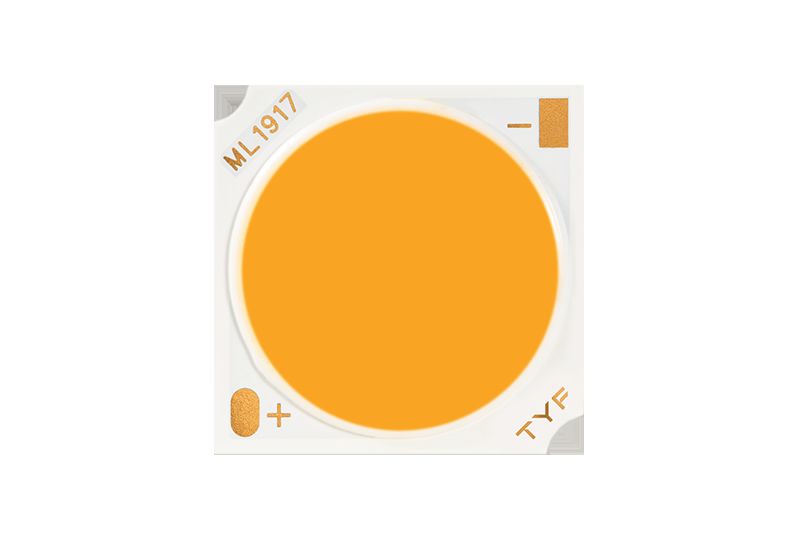

30W 36V RA90 190-200LM/W high power high lumens KSF phosphor

Informação Básica

Lugar de origem:	China
Marca:	TYF
Certificação:	LM-80 Rohs
Número do modelo:	TX1-1917S-1312BB

Quantidade de ordem mínima:	500
Preço:	2.2USD/PCS

Melhor preço contacto

Informação detalhada

Destacar:

30W high power LED COB

36V high lumens COB LED

KSF phosphor LED chip

Descrição de produto

30W 36V RA90 190-200LM/W High Power High Lumens KSF Phosphor

Features

Available in 3-step, 2-step and 1.5-step EasyWhite® bins
Available in 70, 80, 90, 95 and 97 minimum Ra options
Low thermal resistance
RoHS and REACh compliant

Description

The TYF COB package has high efficacy, high Ra, low power consumption, wide viewing angle and a compact form factor. These features make the package an ideal LED for lighting applications.

Applications

Indoor General Lighting: Spotlights, Track Lights, Downlights
Industrial lighting: Floodlight, High bay light, Streetlight

Absolute Maximum Ratings

Limiting power	Standard 30.0W / Max 45.0 W
Forward Voltage (VF)	34-38 V
Forward Current	Standard 830mA / Max 1150 mA
Operating Temperature	-40°C to 85°C
Junction Temperature	125°C
Storage Temperature	-40°C to 105°C
ESD Sensitivity	2000 V
Reverse Voltage	Reverse testing is not allowed
Reverse Current	5 uA
Soldering Temperature	350°C / 3-5 sec.
