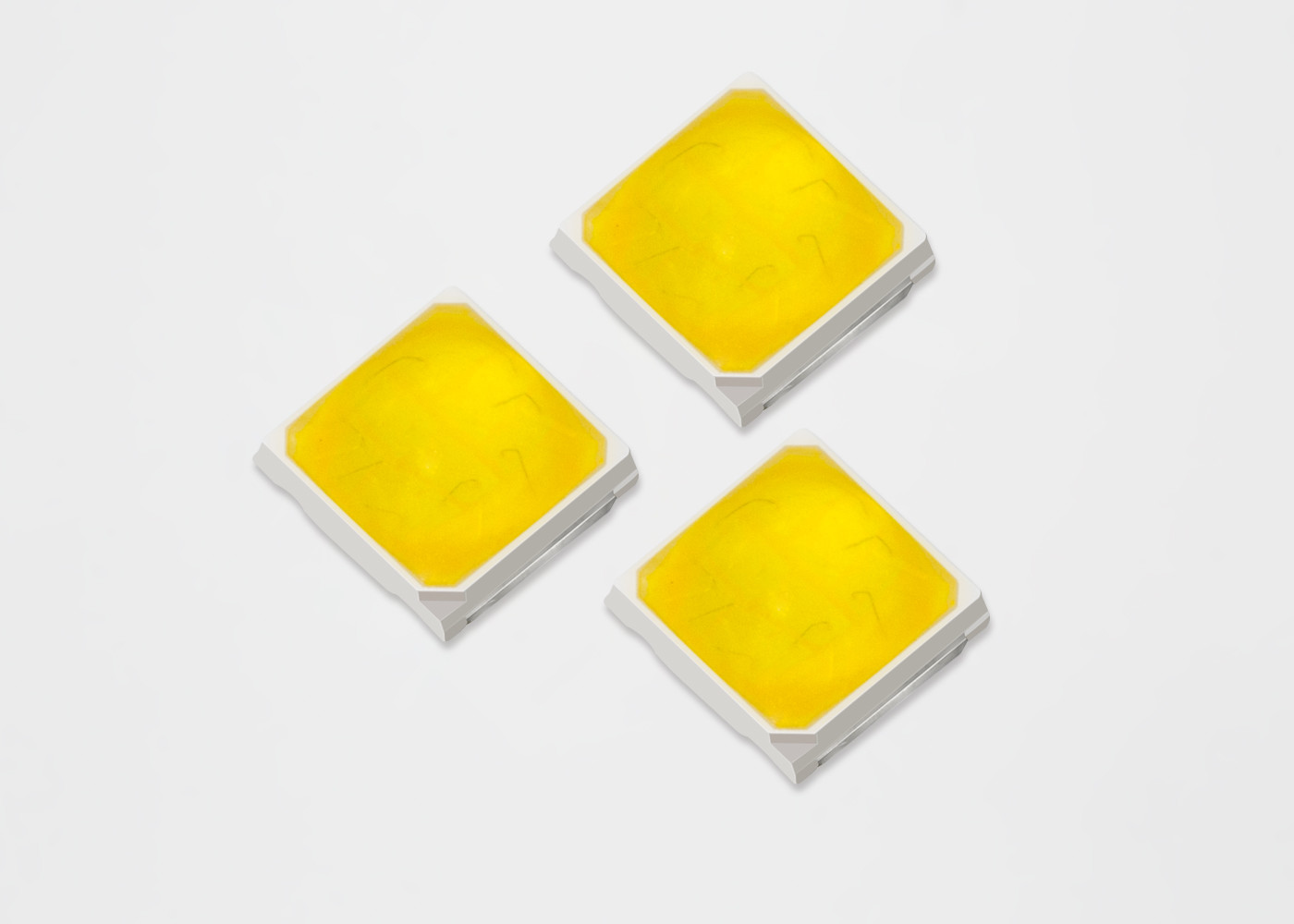

24V 1W PCT5050 smd led chip high lumen SMD 5050 205lm/w 215lm/w White led 4000K

Informação Básica

Lugar de origem:	China
Marca:	TYF
Certificação:	LM 80-9000 hours
Número do modelo:	S-F5-40-81-FQ

Quantidade de ordem mínima:	50K
Preço:	Negociável
Detalhes da embalagem:	Empacotamento de vácuo, 4000 PCes/carretel
Tempo de entrega:	5-7 dias de trabalho
Termos de pagamento:	L/C, D/A, D/P, T/T
Habilidade da fonte:	>1000,000,000 PCes/semana

Melhor preço contacto

Informação detalhada

Diodo emissor de luz:	5050	Material do pacote:	PCT
Ângulo de feixe:	120°	Dimensão:	5.0mm×5.4mm×1.0mm
CRI:	70	Temperatura de cor:	2600-8000K
Wattagem:	1W	Limitando o poder:	2W
Escala da tensão:	24V	Eficiência luminosa:	180-215lm/w
JunctionTemperature:	120ºC	OperatingTemperature:	-40ºC a +105ºC
Sensibilidade do ESD:	2,000VHBM	Certificado:	ROHS LM80
Destacar:	Chip LED de 215lm/w 5050 SMD , Chip LED SMD 5050 branco , Chips led SMD de 24 V 5050

Descrição de produto

24V 1W PCT5050 smd led chip high lumen SMD 5050 205lm/w 215lm/w White led 4000K

Details:

Item name: 1W SMD 5050

Product type: PCT5050

Part Number:S-F5-40-81-FQ

Voltage: 24V

Place of Origin: ShenZhen, China

MOQ: 5000 pcs

The TYF5050 package with higher efficiency and CRI, low power consumption,wide beam angle.

It perfectly solves the requirements for high efficiency and long lifetime

Application

Track Light .Spot Light . Street Light . High Bay . UFO Light. Flood Light

Electrical-optical Characteristics

Part Number	Voltage(V)	Power(W)	CCT(K)	CRI	Efficacy@45mA
S-F5-40-81-FQ	22-24	≤2	2700	70	195-205
			3000	70	195-205
			4000	70	205-215
			5000	70	205-215
			6000	70	200-210
			6250	70	200-210
			6500	70	195-205
			2700	80	180-190
			3000	80	180-190
			4000	80	190-200
			5000	80	190-200
			6000	80	185-195
			6250	80	185-195
			6500	80	180-190

Forward voltage Group	Min Forward voltage(v)@85MA	Max Forward voltage(v)@85MA
220E	22	22.5
225E	22.5	23
230E	23	23.5
235E	23.5	24

Reliability Test Items And Conditions

Serial No.	Test Item	Reference standard	Test condition	Sample Quantity(pcs)	Failure Quantity(pcs)
1	High and low temperature shock	JESD22-A104E	(-40℃15min)-------+120℃(15min),↑↓10mins,200cycles	22	0
2	High Temperature Storage	JESD22-A103D	+100℃,1000h	22	0
3	Low Temperature Storage	JESD22-A119	-40℃,1000h	22	0
4	High Temperature,High Humidity,Aging test	JESD22-A101C	IF=85MA T=+85℃,RH=85%1000h	22	0
5	High-temperature operation	IESLM80-2015	IF=85MA T=+105℃,1000h	22	0
6	Low temperature operation	JESD22-A108D	IF=85MA T=-40℃,1000h	22	0
7	Moisture/Reflow SensitivityTest	J-STD-020E	Precondition:60℃.60%RH.168H Tsld=260℃.10sec. 3Reflows	22	0

24V 1W PCT5050 smd led chip high lumen SMD 5050 205lm/w 215lm/w White led 4000K 0

24V 1W PCT5050 smd led chip high lumen SMD 5050 205lm/w 215lm/w White led 4000K 1

Packing:

24V 1W PCT5050 smd led chip high lumen SMD 5050 205lm/w 215lm/w White led 4000K 3

Key Specifications/Special Features:

1. LM 80-9000 hours passed,long lifespan,more than 54000 hours

2. Good color consistency, High CRI,High LM

3. 99.99% goldwire from Heraeus inside ,better perfermance

4. Customer design is welcomed

Primary Competitive Advantages:

Strong R&D Forces

One of biggest R&D technical team of worldwide LED manufacturers. A strong R&D team of more than 40 experienced engineers.
World standard CNAS Accredited Laboratory.
Launch highly-competitive new products seasonally.
Revolutionary launch for a full series of high power & high integration ceramic flip chip led & compact high power SMDs.
