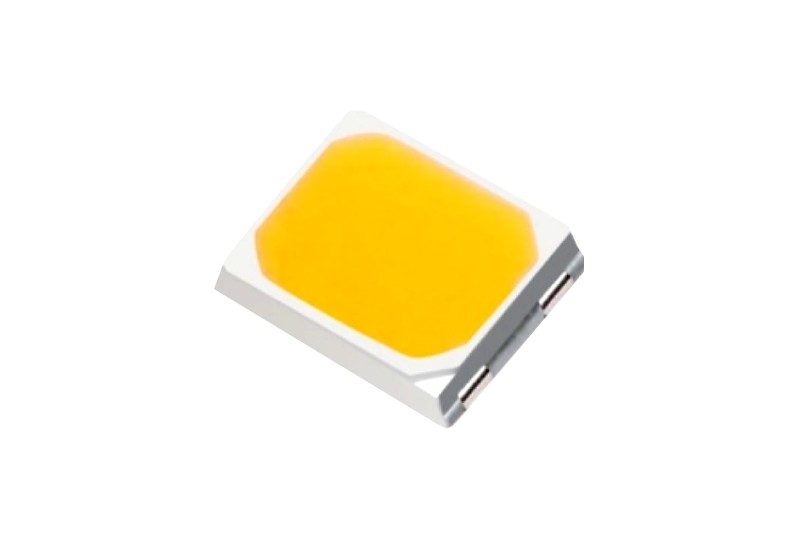

3v 1w White 2835 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 235-245lm/W @60mA

Informação Básica

Lugar de origem:	China
Marca:	TYF
Certificação:	LM-80 Rohs
Número do modelo:	TS1-P28FA-0102BB

Quantidade de ordem mínima:	10000
Preço:	0.013-0.018USD/PCS
Termos de pagamento:	T/t

Melhor preço contacto

Informação detalhada

Destacar:

3v 1w 2835 SMD LED chip

high power 2835 LED 3000K

CRI90 2835 LED 235lm/W

Descrição de produto

3v 1w White 2835 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 235-245lm/W @60mA

Features

PCT package
Package Dimension: 3.5mm × 2.8mm × 0.7mm
Viewing Angle: 120°
ROHS Approved

Description

The TYF 2835 package has high efficacy, high Ra, low power consumption, wide viewing angle and a compact form factor. These features make the package an ideal LED for lighting applications.

Applications

Outdoor general lighting Industrial lighting Professional downlights Retrofits and fixtures High Efficacy LED Series

Technical Specifications

Parameter	Value
Limiting Power	1.0 W
Forward Current	IF ≦300 mA
Operating Temperature	-40℃ To +85℃
Junction Temperature	Tj 125 ℃
Thermal Resistance	21 ℃/W
Storage Temperature	-40℃ To +105℃
ESD Sensitivity	2,000V HBM V
Reverse Voltage	Reverse testing is not allowed
Reverse Current	VR=5V 1uA
Soldering Temperature	260℃/3-5sec.
Moisture Sensitivity Rating	MSL3 ℃/RH/H
