Casa > Produtos> o smd conduziu a microplaqueta> 24V 3w White 5050 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 230-240lm/W @45mA

24V 3w White 5050 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 230-240lm/W @45mA

24V 3w White 5050 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 230-240lm/W @45mA
24V 3w White 5050 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 230-240lm/W @45mA 24V 3w White 5050 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 230-240lm/W @45mA 24V 3w White 5050 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 230-240lm/W @45mA 24V 3w White 5050 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 230-240lm/W @45mA
Informação Básica
Lugar de origem: China
Marca: TYF
Certificação: LM-80 Rohs
Número do modelo: TS1-H50YL-0801BC
Quantidade de ordem mínima: 2000
Preço: 0.092-0.1USD/PCS
Melhor preço contacto
Informação detalhada
Destacar:

24V 5050 SMD LED chip

,

high power 5050 LED

,

3000K 5050 LED chip

Descrição de produto

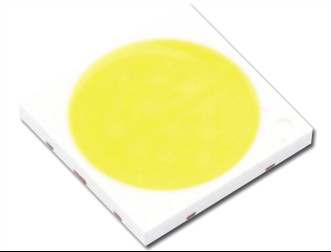

24V 3W White 5050 SMD LED Chip
High Power 3000K 4000K CRI70 CRI80 CRI90 230-240lm/W @45mA
Features
  • Package Dimension: 5.0mm × 5.0mm × 0.7mm
  • Viewing Angle: 120°
  • ROHS Approved
Description

The TYF 5050 package has high efficacy, high Ra, low power consumption, wide viewing angle and a compact form factor. These features make the package an ideal LED for lighting applications.

Applications
  • Outdoor general lighting
  • Industrial lighting
  • Professional downlights
  • Retrofits and fixtures
Absolute Maximum Ratings
Parameter Value
Limiting power 3.0 W
Forward Current IF ≦125mA
Operating Temperature -40ºC To +85ºC
Junction Temperature Tj 125°C
Storage Temperature -40ºC To +105ºC
ESD Sensitivity 2,000V HBM
Reverse Voltage Reverse testing is not allowed
Reverse Current VR=5V 1uA
Soldering Temperature 260ºC/3-5sec.
Moisture Sensitivity Rating MSR MSL3 ℃/RH/H

etiqueta:

LED smd 5050,

espiga do smd conduzida,

o smd conduziu o diodo
